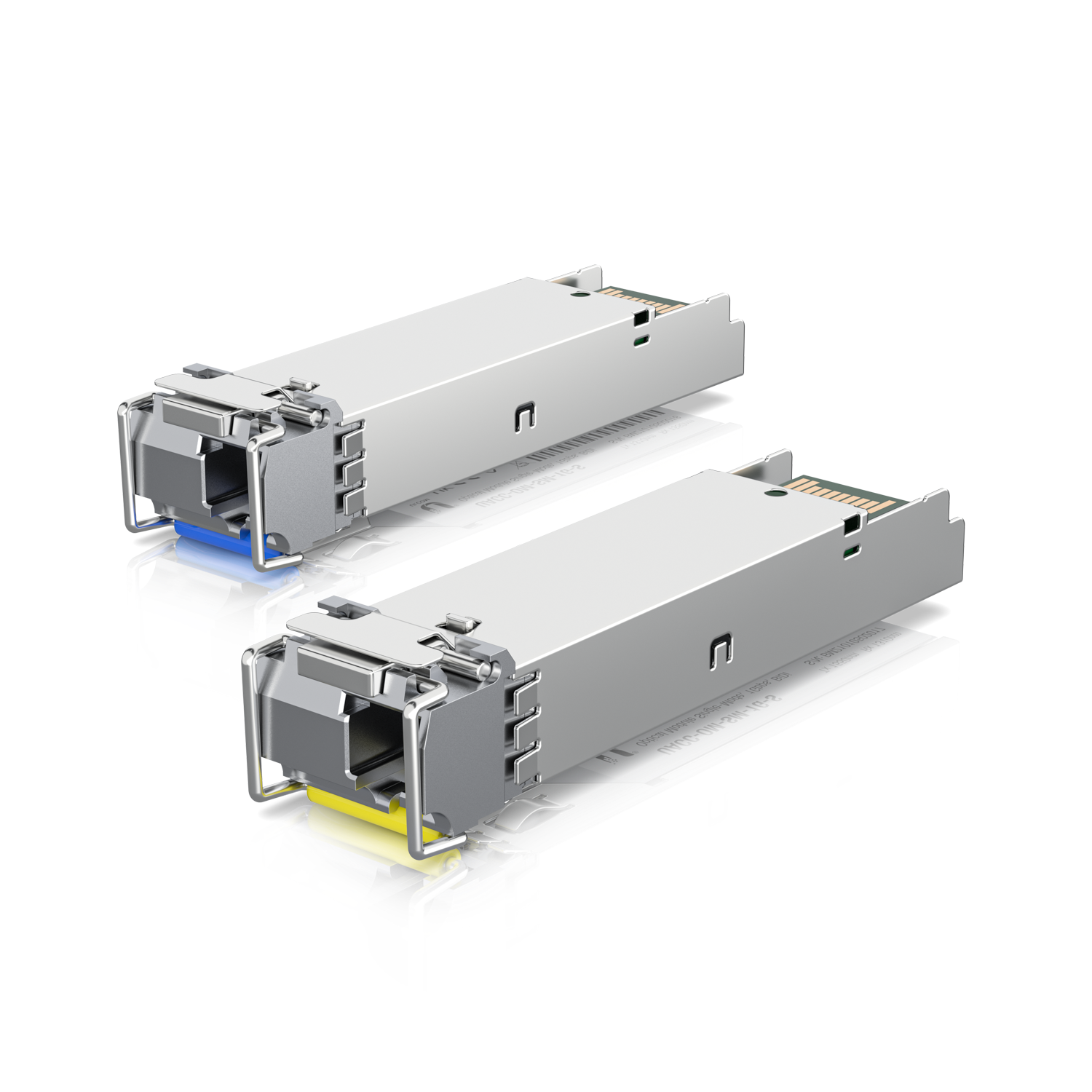

Ubiquiti UACC-OM-SM-1G-S-2 1G BiDi Single-Mode SFP Optical Module 2-Pack, 3km

The Ubiquiti UACC-OM-SM-1G-S-2 is a 1Gbps BiDi single-mode SFP optical transceiver 2-pack designed for reliable fiber optic network connections over distances of up to 3km. Using BiDirectional technology, the modules transmit and receive data over a single strand of single-mode fiber, helping reduce fiber infrastructure requirements while providing a practical solution for switch-to-switch, network-to-network, and other long-distance Ethernet connections. The kit includes two complementary optical modules with different transmit and receive wavelengths, allowing them to operate as a matched pair at opposite ends of the fiber link. Each module uses a simplex LC connector and is suitable for compatible SFP ports on network switches, routers, and other networking equipment.

Product Features

1Gbps Fiber Optic Connectivity

Provides Gigabit Ethernet connectivity for high-speed network links using compatible SFP interfaces.

BiDi Single-Fiber Technology

BiDi technology allows bidirectional data transmission over a single strand of single-mode fiber, eliminating the need for a separate fiber strand for transmit and receive.

Up to 3km Transmission Distance

Supports fiber optic connections of up to 3km, making it suitable for connecting network equipment across buildings, campuses, offices, warehouses, and other extended network environments.

Complementary Wavelength Pair

The two included SFP modules use complementary transmit and receive wavelengths. One module transmits at 1310nm and receives at 1550nm, while the other transmits at 1550nm and receives at 1310nm. The modules are designed to be installed as a matched pair.

Single-Mode Fiber Support

Designed for single-mode fiber optic cabling, providing a reliable option for longer-distance Gigabit Ethernet connections compared with typical multimode fiber solutions.

Simplex LC Connector

Uses a simplex LC UPC optical interface, requiring only one fiber strand for the bidirectional connection.

SFP Form Factor

The compact SFP form factor allows installation in compatible SFP ports on network switches, routers, media converters, and other fiber-enabled networking equipment.

Plug-and-Play Installation

Designed for straightforward installation in compatible networking equipment without requiring a separate power supply or external optical converter.

Low Power Consumption

Each optical module has a maximum power consumption of 0.66W, helping maintain efficient operation within compatible networking equipment.

Wide Operating Temperature Range

Supports operating temperatures from 0°C to 70°C, making the modules suitable for standard indoor networking and equipment-room deployments.

Product Specifications

• Product model: UACC-OM-SM-1G-S-2
• Product type: 1G BiDi single-mode SFP optical module
• Application: Gigabit Ethernet fiber optic networking
• Data rate: 1Gbps
• Fiber type: Single-mode fiber
• Maximum transmission distance: 3km
• Optical technology: BiDirectional (BiDi)
• Fiber strands required: 1
• Connector: Simplex LC UPC
• Transmit wavelength: 1310nm / 1550nm, depending on module
• Receive wavelength: 1550nm / 1310nm, depending on module
• Form factor: SFP
• Maximum power consumption: 0.66W per module
• Operating temperature: 0°C to 70°C
• Quantity: 2 optical modules
• Module configuration: Complementary BiDi pair
• Fiber cable: Not included
• Fiber optic cable requirement: Single-mode simplex fiber with compatible LC UPC termination
• Installation: SFP-compatible port
• Primary use: Point-to-point Gigabit Ethernet fiber links
• Suitable for: Network switches, routers, media converters, and other compatible SFP networking devices
• Manufacturer: Ubiquiti
