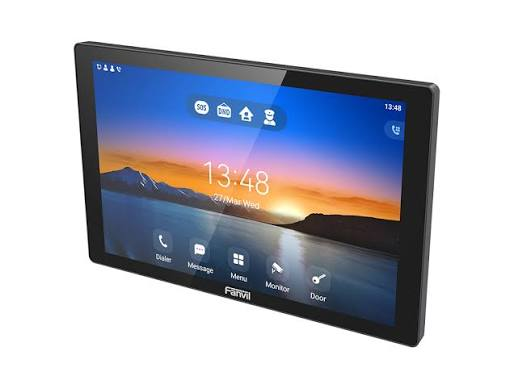

Fanvil i507W Android Indoor Station

The Fanvil i507W Android Indoor Station is a 10.1-inch SIP video intercom and access control device designed for apartments, villas, residential communities, hotels, offices, and commercial buildings. It combines a high-resolution IPS touchscreen with Android 9.0, dual-band Wi-Fi, Ethernet connectivity, and PoE support for flexible network installation. The Fanvil i507W provides hands-free two-way audio and video communication, remote door unlocking, IP camera monitoring, alarm integration, messaging, and support for compatible third-party applications, making it a practical solution for modern building intercom and access control systems.

Product Features

10.1-Inch IPS Capacitive Touchscreen

The Fanvil i507W features a large 10.1-inch IPS color touchscreen with a 1280 x 800 resolution. The capacitive display provides an intuitive interface for managing video calls, monitoring visitors, controlling compatible access systems, and accessing supported applications.

Android 9.0 Operating System

Running Android 9.0, the Fanvil i507W provides a familiar touchscreen interface and supports compatible third-party applications. The Android platform also provides flexibility for customized applications and smart building integrations.

SIP Video Intercom

The i507W supports SIP 2.0 communication over UDP, TCP, and TLS, allowing integration with compatible SIP door phones and video intercom systems. It supports video communication with resolutions up to 1080p, depending on the connected equipment and system configuration.

Full-Duplex Hands-Free Communication

The indoor station features a built-in 2W speaker and Acoustic Echo Cancellation for clear hands-free communication. It supports multiple audio codecs, including G.711A/U, G.729AB, iLBC, G.722, and Opus.

Remote Door Unlocking

The Fanvil i507W supports remote door unlocking, allowing users to release a compatible door access system directly from the indoor station during an intercom call. This is suitable for controlled-entry environments such as apartment buildings, offices, hotels, and residential properties.

Dual-Band Wi-Fi Connectivity

Built-in 2.4 GHz and 5 GHz Wi-Fi provides flexible wireless connectivity. This allows the indoor station to connect to a suitable network without requiring a dedicated Ethernet cable for network communication.

Ethernet and PoE Support

The i507W includes a 10/100 Mbps Ethernet interface and supports IEEE 802.3af Power over Ethernet. PoE can simplify installation by allowing compatible network infrastructure to provide both data connectivity and power through a single Ethernet cable.

IP Camera Monitoring

The Fanvil i507W supports monitoring from compatible third-party IP cameras, allowing users to view additional camera feeds through the indoor station. This can help integrate visitor communication and video monitoring within one device.

Alarm and Security Integration

The indoor station provides eight alarm inputs, one short-circuit output, and one doorbell input for integration with compatible security and access control equipment. An RS485 interface is also available for supported applications.

Customizable Communication Functions

The i507W supports customizable incoming call ringtones, Do Not Disturb schedules, DTMF functions, and message sending and receiving. These functions provide additional flexibility for residential and commercial communication systems.

Wall-Mounted Design

The Fanvil i507W is designed for wall-mounted installation and features a slim profile. Its compact design makes it suitable for indoor installation in apartments, villas, hotels, offices, and other buildings requiring a dedicated video intercom station.

Product Specifications

• Brand: Fanvil
• Model: i507W
• Product Type: Android SIP Indoor Station
• Operating System: Android 9.0
• Display Size: 10.1 inches
• Display Type: IPS color capacitive touchscreen
• Display Resolution: 1280 x 800 pixels
• Audio: Full-duplex hands-free communication
• Speaker: 2W
• Audio Enhancement: Acoustic Echo Cancellation
• Narrowband Audio Codecs: G.711A/U, G.729AB, iLBC
• Wideband Audio Codecs: G.722, Opus
• Video Codec: H.264
• Optional Video Codec: H.265
• Supported Video Resolutions: QVGA, CIF, VGA, 4CIF, 720p, 1080p
• SIP Version: SIP 2.0
• SIP Transport: UDP, TCP, TLS
• Wi-Fi: 2.4 GHz and 5 GHz
• Ethernet: 10/100 Mbps
• PoE: IEEE 802.3af
• Power Supply: DC 12V / 1A
• Alarm Inputs: 8
• Short-Circuit Output: 1
• Doorbell Input: 1
• RS485: 1 reserved interface
• DTMF: In-band, RFC2833, SIP INFO
• Remote Door Unlocking: Supported
• IP Camera Monitoring: Supported
• Third-Party Application Support: Supported
• Do Not Disturb: Supported
• Message Sending and Receiving: Supported
• Installation: Wall-mounted
• Dimensions: 247.96 x 156.96 x 25.6 mm
• Working Temperature: -10°C to 50°C
• Storage Temperature: -40°C to 80°C
• Working Humidity: 10% to 90% RH
