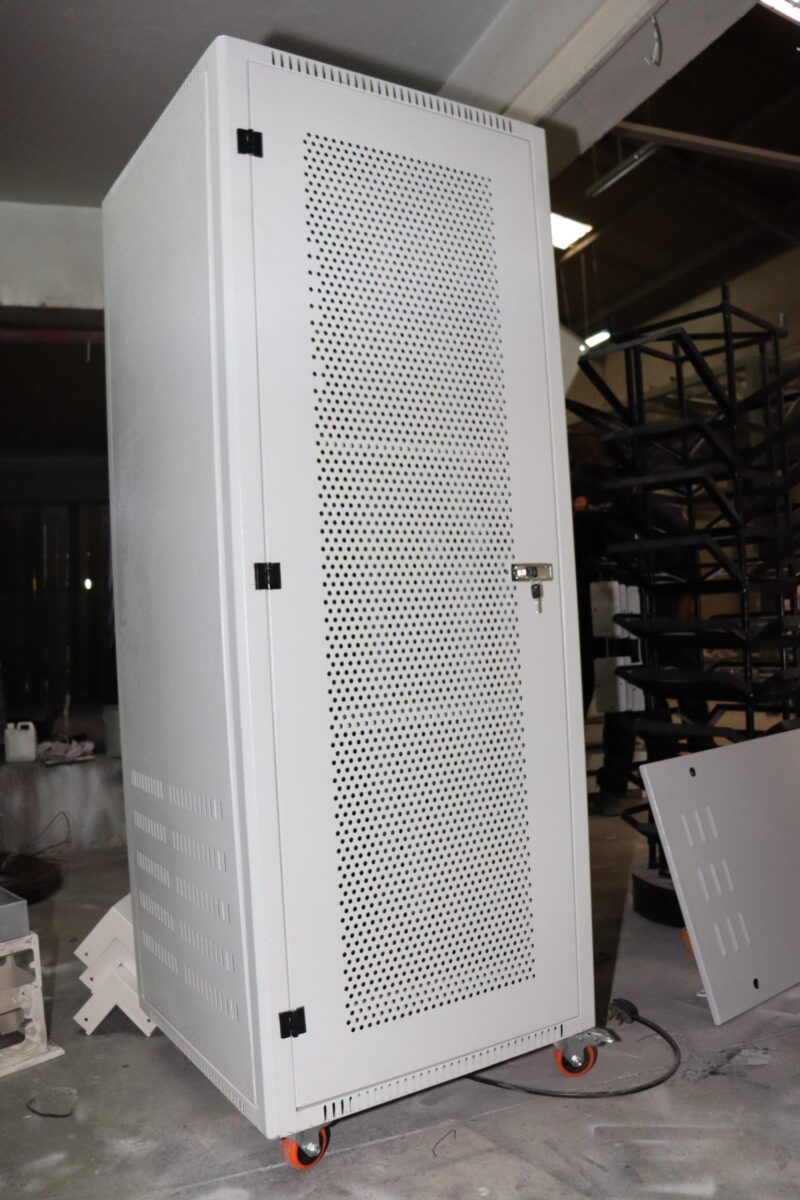

45U Outdoor Data Cabinet – 2100x660x1000 mm

The 45U Outdoor Data Cabinet is a high-capacity, weather-resistant enclosure designed to protect network and telecommunications equipment in harsh external environments. With a durable steel frame, IP-rated protection, and built-in cooling options, this cabinet ensures safe and secure operation of critical hardware in outdoor deployments. Ideal for telecom towers, industrial sites, and remote installations, it combines capacity, durability, and functionality in one professional-grade solution.

Product Features

Weatherproof Construction

Built with powder-coated galvanized steel and sealed to prevent moisture, dust, and debris from entering, the cabinet is rated for outdoor use in extreme weather conditions.

IP55-Rated Environmental Protection

The cabinet meets IP55 standards, offering strong protection against water jets and limited dust ingress, making it suitable for exposed environments.

High-Capacity 45U Rack Space

Provides 45U of usable rack height, supporting a wide range of IT, power, and networking equipment with a maximum loading capacity of up to 1000 kg.

Effective Heat Management

Equipped with dual exhaust fans and ventilation channels for passive airflow, with optional integration of an air conditioning unit or TEC cooling system to maintain optimal internal temperatures.

Secure Access Control

Features front and rear lockable doors with three-point locking systems and anti-vandal protection for increased security in unmanned installations.

Cable Management and Organization

Integrated cable entry points and adjustable internal mounting rails provide efficient cable routing and organized equipment placement.

UV-Resistant and Corrosion-Proof Finish

The cabinet is coated with UV-resistant outdoor powder paint, which prevents corrosion and degradation over time due to sun exposure or harsh environments.

Product Specifications

• Rack Units: 45U
• External Dimensions: 2100 mm (H) x 660 mm (W) x 1000 mm (D)
• Material: Galvanized steel with outdoor-grade powder coating
• Protection Rating: IP55 (weatherproof)
• Cooling: Dual 120 mm fans pre-installed; supports additional fan kits or AC units
• Locking: Three-point locking system with padlock support
• Weight Capacity: Up to 1000 kg
• Mounting Rails: Adjustable, 19-inch rack-mount standard
• Cable Access: Top and bottom cable entry with rubber grommets
• Ventilation: Louvered vents with insect filters and internal airflow channels
• Color: Light gray (RAL 7035)
• Grounding: Integrated grounding system for electrical safety
• Installation: Floor standing with optional plinth or concrete base mounting
